1.Introduction
Scavenge air pressure is one of the most important operating parameters of a marine two-stroke & four stroke main engine.
Proper scavenging ensures sufficient fresh air enters the cylinder, removes exhaust gases, and supports complete fuel combustion.
When scavenge air pressure drops below the normal operating range, engine performance decreases significantly. If ignored, it may lead to high exhaust temperatures, black smoke, increased fuel consumption, turbocharger surging, and even scavenge fires. Maintaining adequate scavenge pressure is essential for safe, efficient, and reliable engine operation.
2.What is Scavenge Air Pressure?
Scavenge air pressure is the compressed air supplied by the turbocharger (or auxiliary blower at low loads) into the scavenge receiver before entering each cylinder.
Its main functions are:
- Remove burnt exhaust gases
- Supply fresh oxygen for combustion
- Cool engine components
- Improve fuel efficiency
- Reduce emissions
3. Typical Symptoms of Low Scavenge Pressure
Typical symptoms include:
- Low scavenge pressure alarm
- High exhaust gas temperature

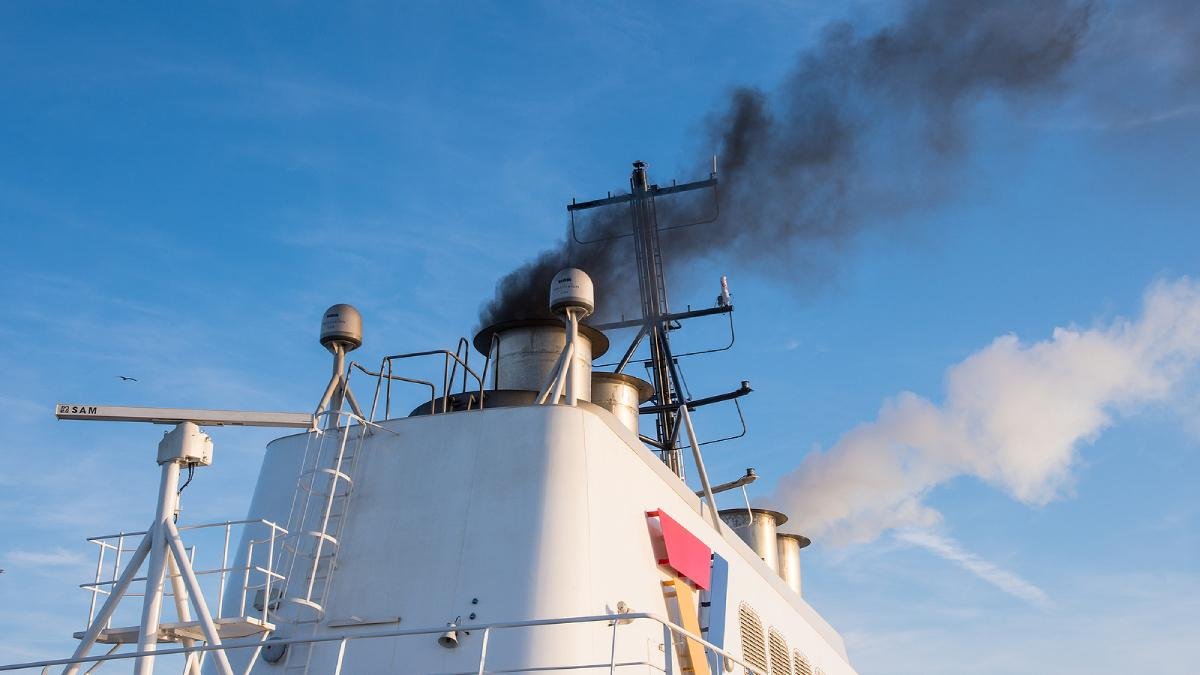

- Black exhaust smoke
- Engine power loss
- Increased fuel consumption
- Turbocharger surging
- Engine overload
- Slow acceleration
These symptoms are commonly associated with reduced air supply, turbocharger issues, air leaks, or fouled intake components.
4. Troubleshooting Table
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| Low Scavenge Pressure | Turbocharger compressor fouled | Clean compressor wheel and turbine |
| Low Pressure | Dirty air filter | Replace or clean filter |
| Low Pressure | Air cooler blocked | Chemical cleaning or overhaul |
| Low Pressure | Exhaust gas leakage | Repair exhaust manifold leakage |
| Low Pressure | Stuffing box leakage | Renew sealing rings |
| Low Pressure | Turbocharger damage | Inspect bearings and rotor |
| Low Pressure | Auxiliary blower failure | Repair motor or non-return flap |
| Low Pressure | Engine room negative pressure | Improve ventilation |
Most of these faults reduce the air available for combustion or prevent the turbocharger from generating sufficient boost.

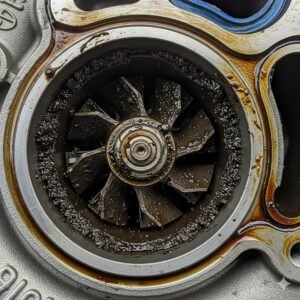

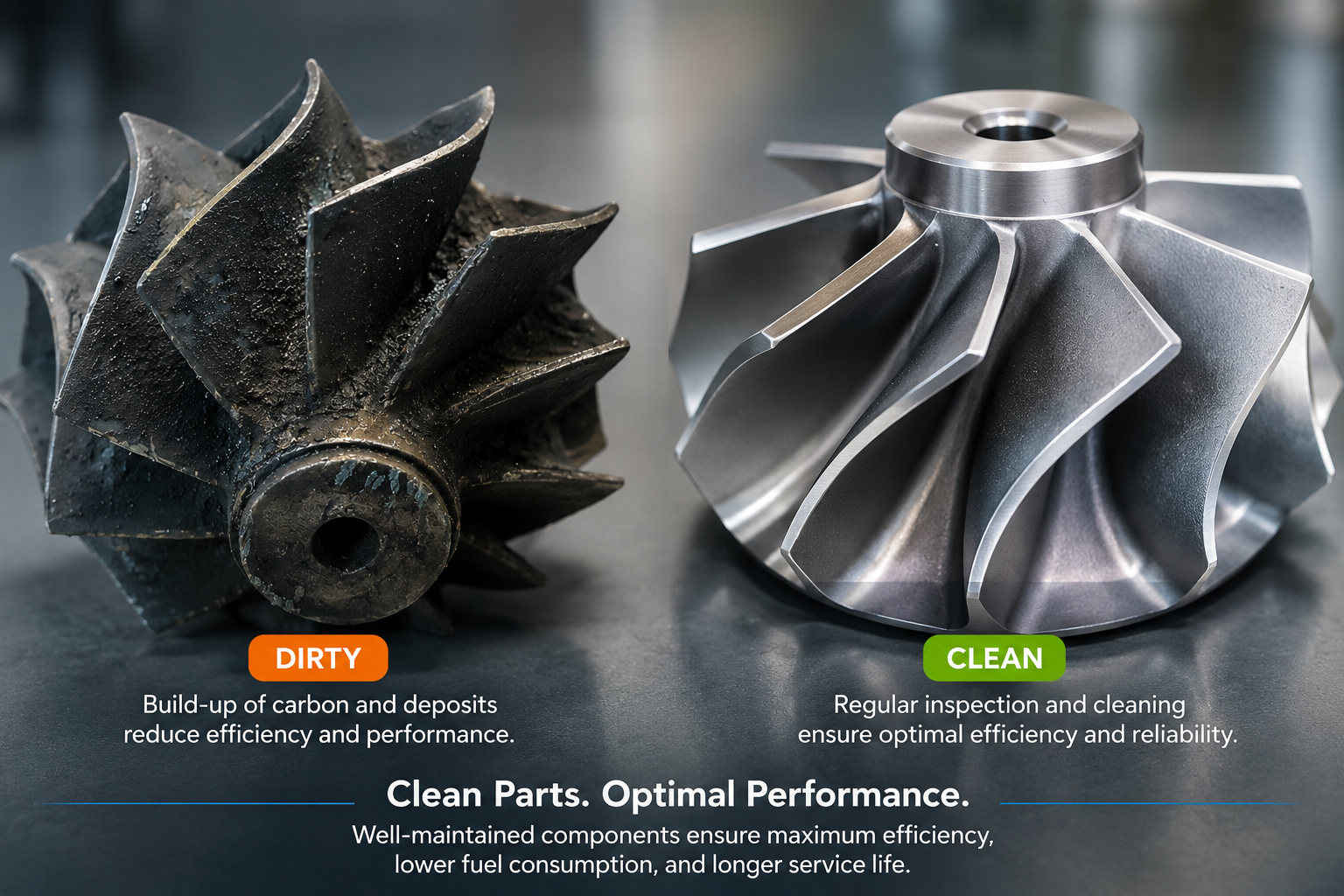

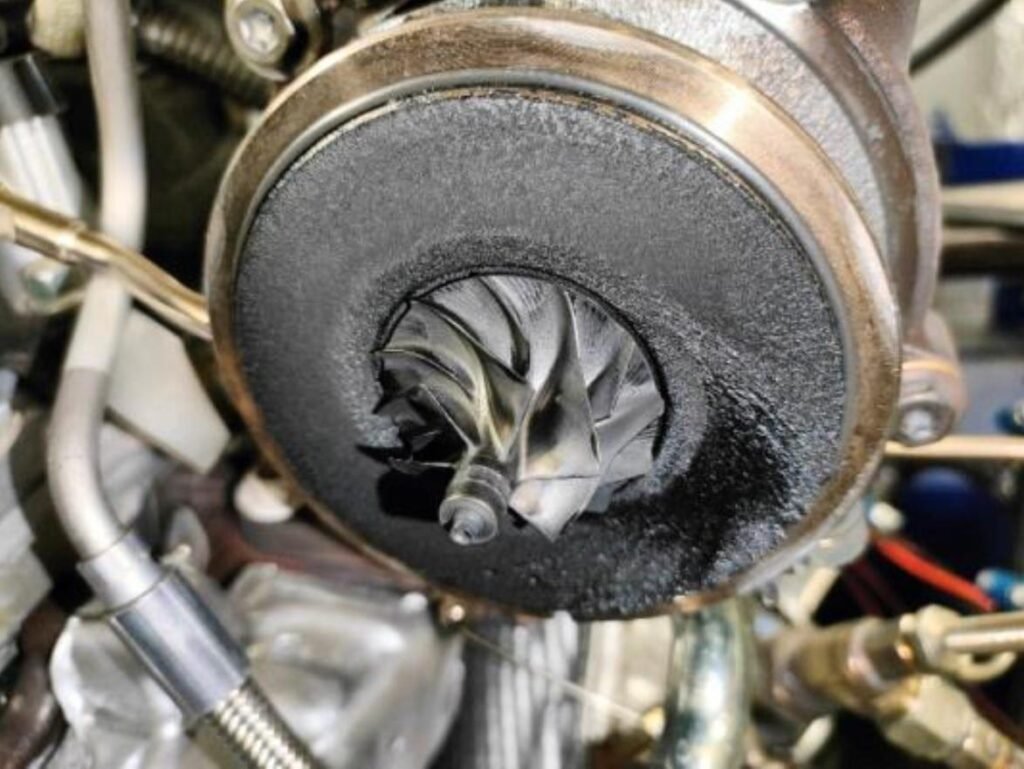

5. Dirty Turbocharger parts
Symptoms
- Low boost pressure
- High exhaust temperature
- Black smoke
Cause
Dirt, oil deposits, or carbon accumulation reduce turbocharger efficiency.
Solution
- Water washing
- Compressor cleaning
- Turbine overhaul
- Rotor balancing

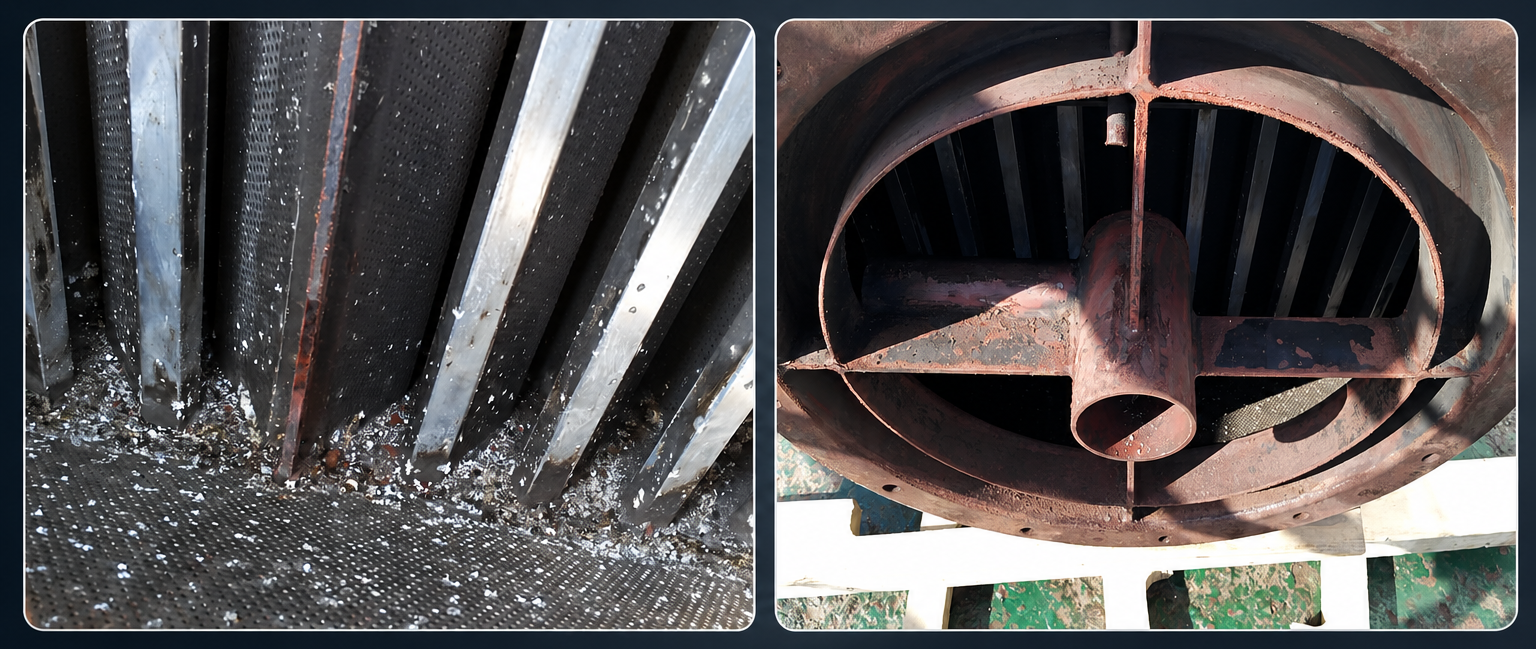

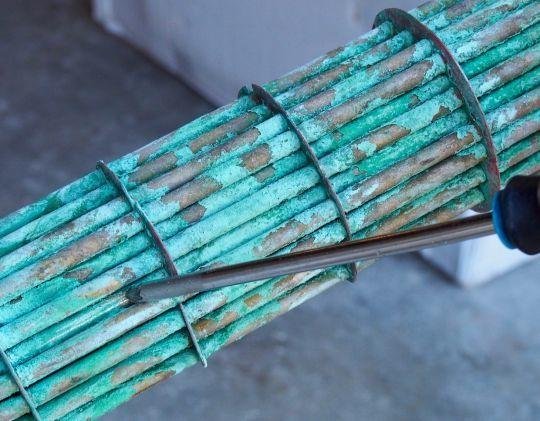

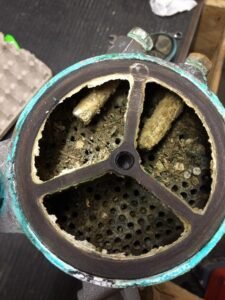

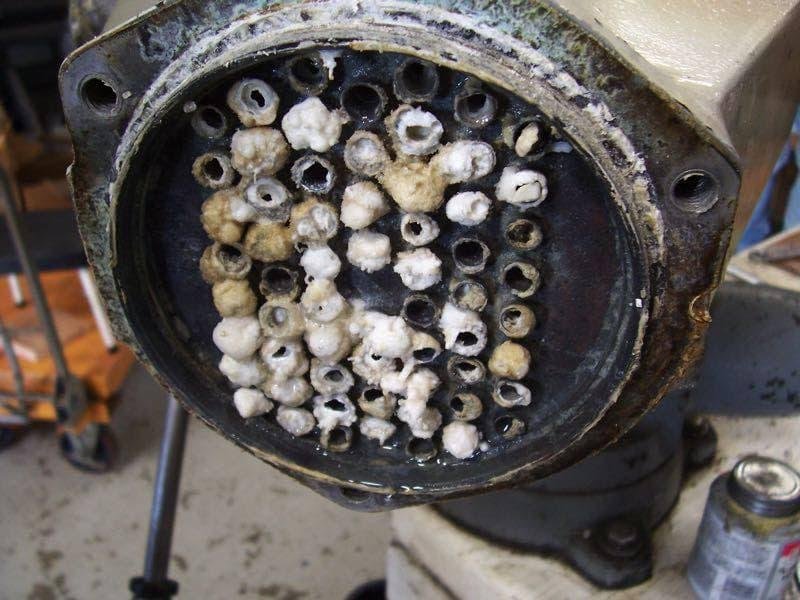

6. Blocked Charge Air Cooler
Symptoms
- High scavenge air temperature
- Low air density
- Poor combustion
Cause
Salt deposits, oil contamination, or marine fouling reduce cooling efficiency.Solution
- Chemical cleaning
- Pressure testing
- Replace damaged tubes
- Bedplate is a box shaped single construction. It constitutes the main structural members of the engine. The bedplate is used as lubricating oil reservoir and a dipstick is provided to ascertain the level. The bedplate is either welded or cast design. The engine frame is made of cast iron and turbocharger bracket houses an air cooler.
7. Dirty Turbocharger Air Filter
Symptoms
- Turbocharger RPM decreases
- Low air intake
- Engine smoke
Solution
- Clean filter
- Replace damaged filter element
- Inspect intake ducting

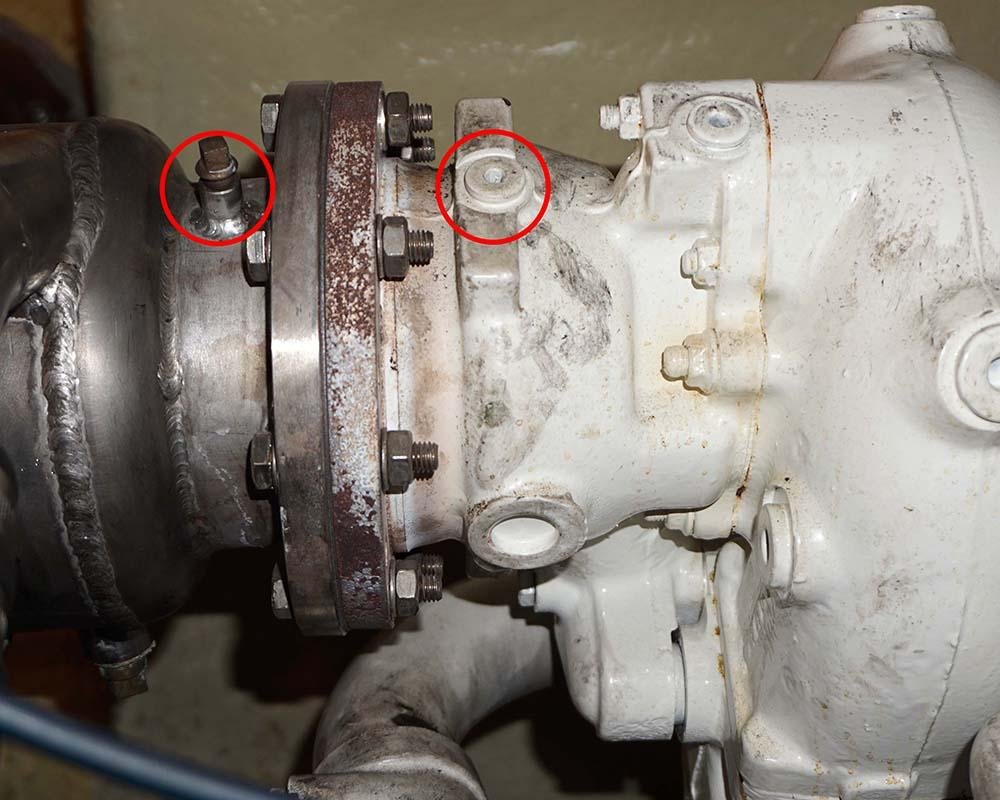

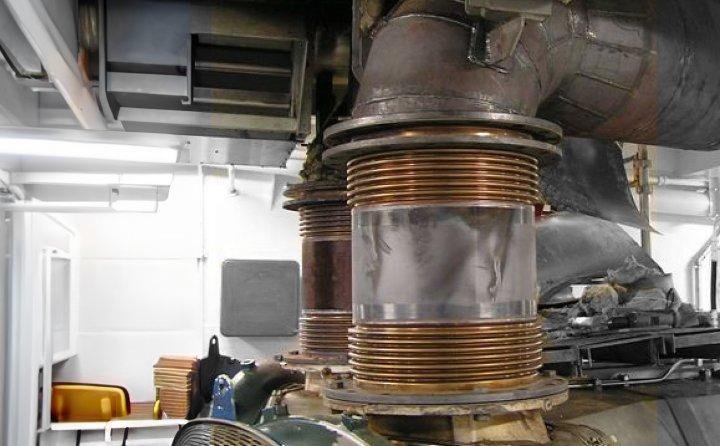

8. Exhaust Gas Leakage
Symptoms
- Low turbocharger speed
- High exhaust temperature
- Reduced engine load
Cause
Exhaust energy is lost before reaching the turbine.
Solution
- Repair manifold cracks
- Replace expansion joints
- Tighten flange connections

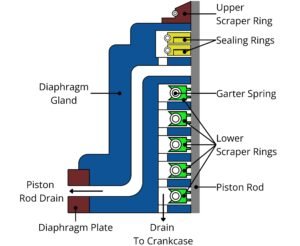

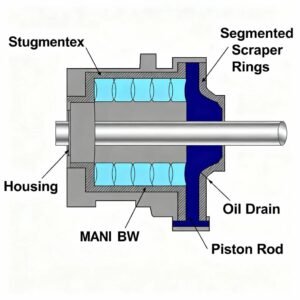

9. Air Leakage from Stuffing Box
Symptoms
- Low scavenge pressure
- High crankcase contamination
- Oil carryover
Solution
- Renew sealing rings
- Inspect drain system
- Replace worn components

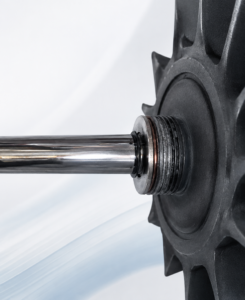

10. Turbocharger Bearing Damage
Symptoms
- High vibration
- Noise
- Low boost pressure
Solution
- Measure bearing clearance
- Replace bearings
- Balance rotor
- Dynamic testing
11. Auxiliary Blower Failure
Symptoms
- Low scavenge pressure at low load
- Poor acceleration
Solution
- Check blower motor
- Inspect NRV (non-return valve)
- Test pressure switch
12. Preventive Maintenance Checklist
- ✔ Clean turbocharger compressor regularly
- ✔ Wash charge air cooler
- ✔ Replace intake air filters
- ✔ Inspect stuffing box
- ✔ Monitor exhaust temperature trends
- ✔ Check turbocharger RPM
- ✔ Inspect scavenge drains
- ✔ Record daily scavenge pressure readings
13. Why Choose Sindhu Marine?
At Sindhu Marine, we supply high-quality marine engine and turbocharger spare parts for leading brands including ABB/Accelleron, MAN, Mitsubishi (MHI), KBB, Napier, IHI, and Holset. Our extensive product range includes turbocharger service kits, air cooler spare parts, filters, bearings, sealing components, and genuine or OEM engine spares to help ship operators maintain reliable engine performance.
Whether you require technical support, urgent spare parts , Sindhu Marine delivers dependable products with competitive pricing and prompt worldwide service.
